Description
SPECIFICATIONS
Brand Name: must energy
Origin: Mainland China
Certification: CE
Certification: RoHS

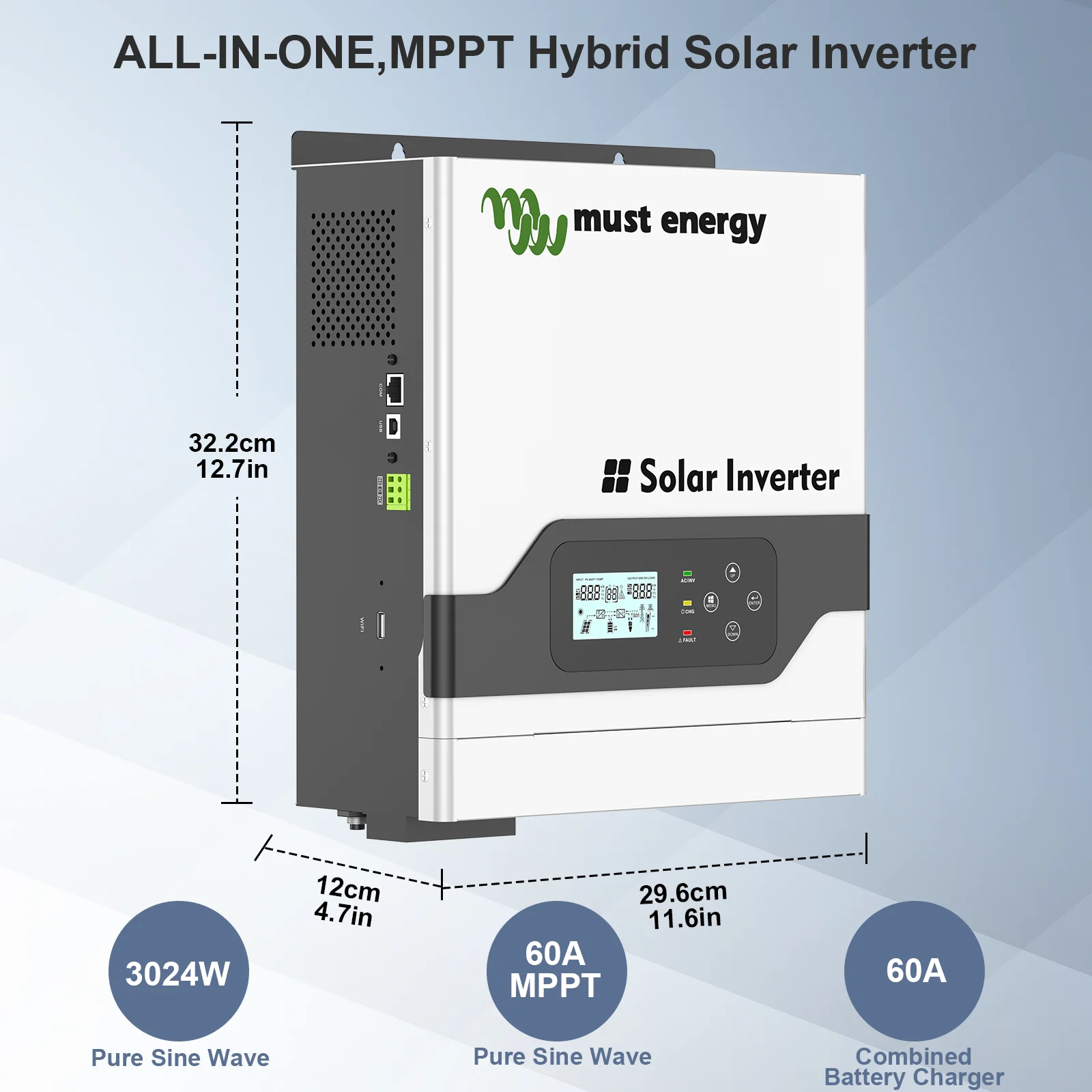

Size: 272*355*100mm
Output Frequency: 50Hz/60Hz
Output Type: single
is_customized: Yes
Output Current: MAX 13.63A
Output Power: 1 – 200KW
Weight: 9KG
Is Smart Device: YES
Model Number: MP19-3024 VM
Rate Power: 3000W
Surge Power: 6000W
Battery Voltage: 24V
PV Voltage Arrange: 30-130V
Max PV Input: 145V
Monitor: PC/WIFI/LCD
MPPT Controller: 60A
Output Voltage: 220-240V
PV Input Power: Recommend 1500W
Weight: 8.2kg
Wavefrom: Pure Sine Wave
Parallel: No
Type 1: Off Grid Solar Inverter
Type 2: Hybrid Solar Inverter
Type 3: Home Solar Inverter
Type 4: High Frequency Solar Inverter
Product Recommend
-
Rated power 1KW to 5KW
-
Pure sine wave output
-
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
-
Bult in MPPT50A/80A solar charge controller
-
Combining solar system, AC utility, and battery power source to supply continuous power
-
Overload, short circuit and Deep discharge protection
-
Cold start function
-
Support USB, RS485 monitoring function with free CD
-
WIFI remote monitoring (optional)
-
Compatible to generator
-
3KW-5KW 48V support parallel function(optional)
|
MODEL |
MP19-3024 VM |
|
Default Battery System Voltage |
24VDC |
|
INVERTER OUTPUT |
|
|
Rated Power |
3000VA / 3000W |
|
Surge Power |
6000VA |
|
Waveform |
Pure sine wave |
|
AC Voltage Regulation (Batt.Mode) |
220VAC~240VAC(Setting) |
|
Inverter Efficiency(Peak) |
90%~93% |
|
Transfer Time |
10ms(UPS / VDE4105) / 20ms(APL) |
|
AC INPUT |
|
|
Voltage |
230VAC |
|
Selectable Voltage Range |
170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VDE) |
|
Frequency Range |
50Hz / 60Hz (Auto sensing) |
|
BATTERY |
|
|
Normal voltage |
24VDC |
|
Floating Charge Voltage |
27.4VDC |
|
Overcharge Protection |
30VDC |
|
SOLAR CHARGER & AC CHARGER |
|
|
Maximum PV Array Open Circuit Voltage |
145VDC |
|
PV Array MPPT Voltage Range |
30~120VDC |
|
Standby Power Consumption |
2W |
|
Maximum PV Array Power |
1500W |
|
Maximum Solar Charge Current |
60A |
|
Maximum Efficiency |
98% |
|
Maximum AC Charge Current |
20A or 30A |
|
Maximum Charge Current |
80A |
|
MECHANICAL SPECIFICATIONS |
|
|
Machine Dimensions (W*H*D)(mm) |
272*355*100 |
|
Package Dimensions (W*H*D)(mm) |
485*393*251 |
|
Net Weight(kg) |
7.4 |
|
Gross Weight(kg) |
9.5 |
|
OTHER |
|
|
Humidity |
5% to 95% Relativ Humidity (Non-condensing) |
|
Operating Temperature |
-10°C~50°C |
|
Storage Temperature |
-15°C -60°C |
FAQ
Q: Shipping Policy
A: 1. Shipping from China: Parcel sent within two working days
Standard logistics: delivery time: 15-40 days
Fast logistics (DHL/FedEx/UPS): delivery time: 7-10 days
2. Shipping from Polish warehouse: parcels sent within one working day
Delivery time: 3-5 days
Q：Warranty policy
A：The warranty period of each inverter is one year, effective from the time you receive the goods, within one year of non-human factors of damage, engineers will diagnose for you free of charge to determine the problem and provide repair solutions, free accessories within the warranty period
Q：After-sales policy
A：Other problems can be directly online contact us, technical problems can be directly contacted with engineers, 24 hours online to provide you with services
Engineer phone: +86 17788797642, WeChat and WhatsApp with the same number
E-mail: cs-zjs@mustpower.cn
